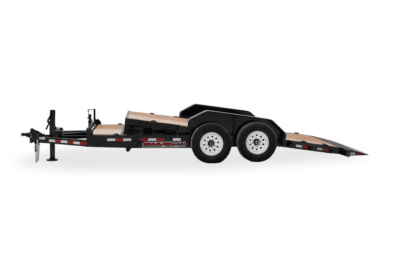

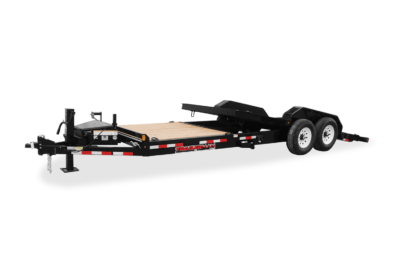

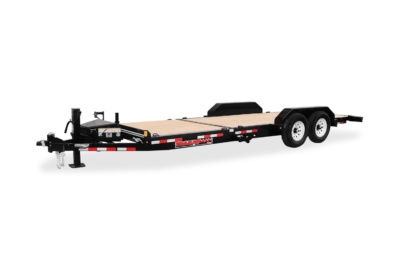

Cushioned Tilt Deck Trailer
Description
The cushion cylinder and control valve offers an easy 10-degree tilt, no bulky ramps or hydraulics to maintain. This trailer is a dream for loading and unloading. Plus the Cushion Tilt Deck trailer is offered in 14k and 16k models, making it a very versatile trailer for your equipment needs.
Features
- Rectangular Tube Frame and Tongue
- Channel Crossmembers
- Front Bump Rail
- Adjustable Height Coupler with Safety Chains
- Dual Safety Chains & Hooks
- Sealed Wire Harness
- Dual Pin S.L. Drop Leg Jack
- Diamond Plate Knife Edge Dovetail
- 10 Degree Tilt
- Steel Heavy Duty Formed Fenders
- Tandem Drop Spring Brake Suspension
- Easy Lube Hubs
- Breakaway Kit
- Radial Tires on White Steel Wheels
- Two-Component Epoxy and Polyurethane Primer and Top Coat
- 2" Treated Lumber Decking
- (10) Weld On D-Rings
- Spare Tire Carrier
- Lockable, Tongue Mounted A-Frame Toolbox
- Document Holder
- Receiver Tube Winch Mount
- Rubber Mounted Sealed LED Lights
- Cushion Cylinder with Control Flow Valve
All Available Sizes
Cushioned tilt deck trailers
- 83" x 16' + 4' (14k) – Load capacity, 10,360 lbs
- 83" x 16' + 6' (14k) – Load capacity, 9965 lbs
- 83" x 18' + 4' (14k) – Load capacity, 9920 lbs
- 83" x 18' + 6' (14k) – Load capacity, 9630 lbs
- 83" x 16' + 4' (16k) – Load capacity, 11,525 lbs
- 83" x 16' + 6' (16k) – Load capacity, 11,265 lbs
- 83" x 18' + 4' (16k) – Load capacity, 11,360lbs
- 83" x 18' + 6' (16k) – Load capacity, 11,150 lbs
